The objective of this post is to explain and show how to implement the Flyweight Pattern in a basic way and see how this pattern can help you to reduce the memory usage of your applications.
The objective of this post is to explain and show how to implement the Adapter Pattern in a basic way.
Check all the description and information related to the Adapter Pattern and return here to see a practical example.
You're an avid gamer with a collection of controllers—Xbox, PlayStation, Nintendo, you name it. Each controller speaks a different "language" with unique button mappings and input methods. Your game, however, expects a single, unified interface to process these inputs. How can you make your Xbox controller work effortlessly with a game that was originally designed for a different controller?
The Xbox Controller Adapter bridges the gap between the diverse Xbox controller interface and the standardized game controller interface expected by your game. By implementing the Adapter Pattern, we create a seamless translation layer that allows the Xbox controller to communicate perfectly with your game.
We start by defining a universal interface, IGameController, that includes the basic functionalities any game controller should have—button presses and joystick movements.
public interface IGameController
{
void SendKey(char key);
}
The Xbox controller has its unique methods for handling input. Our XboxControllerAdapter steps in to translate these unique methods into the standard IGameController interface.
public class XboxAdapter : IGameController
{
private readonly XboxController _adaptee;
public XboxAdapter(XboxController adaptee)
{
this._adaptee = adaptee;
}
public void SendKey(char key)
{
string button = "";
switch (key)
{
case 'w':
button = "UP";
break;
case 's':
button = "DOWN";
break;
case 'a':
button = "LEFT";
break;
case 'd':
button = "RIGHT";
break;
}
_adaptee.PressButton(button);
}
}
public class XboxController
{
public void PressButton(string button)
{
Console.WriteLine(button);
}
}
With the adapter in place, you can now use your Xbox controller as if it was designed for the game’s original controller interface. The adapter ensures all inputs are correctly translated and processed.
public class Game
{
private readonly IGameController _gameController;
public Game(IGameController gameController)
{
_gameController = gameController;
}
public void Play()
{
_gameController.SendKey('a');
_gameController.SendKey('w');
}
}
class Program
{
public static void Main()
{
XboxController xbox = new XboxController();
IGameController gameController = new XboxAdapter(xbox);
Game game = new Game(gameController);
game.Play();
}
}
In order to see the result of the code above, you can run the following code snippet:
The objective of this post is to explain and show how to implement the Proxy Pattern in a basic way.
Check all the description and information related to the Proxy Pattern and return here to see a practical example.
Welcome to a magical world where wizards wield powerful spells from enchanted spellbooks. Each spellbook is a treasure trove of mystical knowledge, containing spells capable of performing wonders like summoning fireballs, controlling the weather, or even teleporting across vast distances. However, these spells come with certain conditions. A wizard needs sufficient mana (magical energy) to cast a spell, and some spells require the wizard to solve ancient riddles before they can be used.
The objective of this post is to explain and show how to implement the Composite Pattern in a basic way.
Check all the description and information related to the Composite Pattern and return here to see a practical example.
Imagine you're developing a game where players can build and customize their own game levels. Each level can contain various elements like buildings, trees, and enemies. Some elements are simple (like a single tree), while others are complex (like a fortress composed of walls, towers, and gates). Players should be able to interact with these elements uniformly, whether they are single items or complex structures.
The objective of this post is to explain and show how to implement the Façade Pattern in a basic way.
Check all the description and information related to the Façade Pattern and return here to see a practical example.

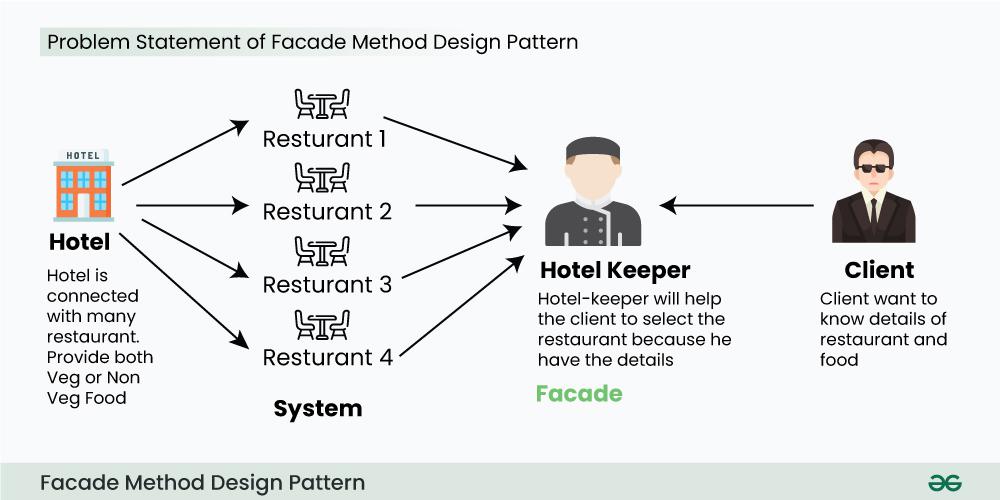

Image taken from GeekForGeeks
Imagine that you want to process multimedia like videos and images using FFmpeg.
During your development you found that your library just executes FFmpeg and run a command, but your clients don't like this idea because they manually need to create the command and make all the validations to the file,
for example you want you join two videos intro.mp4 and ending.mp4 but you need to validate that they have the same codecs, the same resolution, the output file result.mp4 cannot exists, and the destination path where the program is going to save the file has the right permissions (read and write).

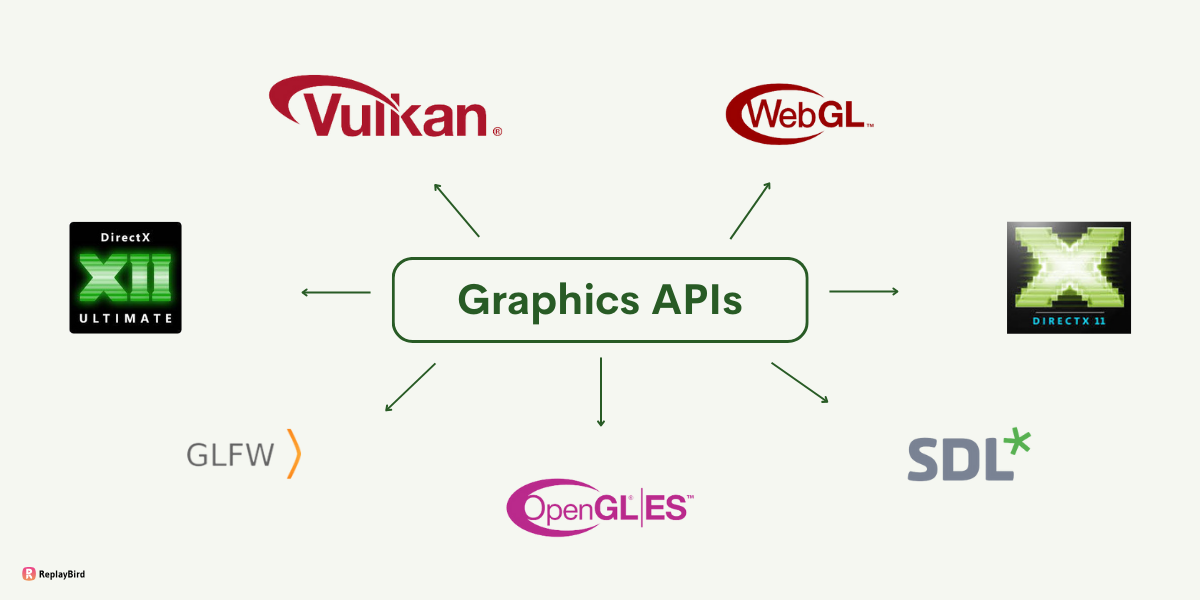

Image taken from ReplayBird
The objective of this post is to explain and show how to implement the Bridge pattern
Check all the description and information related to the Bridge Pattern and return here to see a practical example.
Imagine that you are creating a new graphics engine and this engine needs to be able to run on the different operating systems Like Windows, Linux and OSX.
As you delve deeper into the development process, you encounter a significant hurdle: the diverse Graphics APIs supported by each operating system.
Your initial approach involves creating separate classes to implement the functionality for each Graphics API, resulting in DirectxApi, OpenGlApi, and VulkanApi.
However, as your codebase grows, maintaining these distinct classes becomes increasingly unwieldy.
With the Bridge Pattern, you're presented with an elegant solution to this conundrum. By adopting the Bridge Pattern, you can effectively separate the abstraction of the graphics functionality from the platform-specific implementations. Let's explore how the Bridge Pattern transforms your approach and mitigates the challenges of managing a growing codebase.
The objective of this post is to explain and show how to implement the Singleton Pattern in a basic way.
Check all the description and information related to the Singleton Pattern and return here to see a practical example.
In your immersive fantasy game, players embark on epic quests across mystical realms, each connected by magical portals. These portals serve as gateways between worlds, allowing adventurers to traverse vast landscapes, encounter mythical creatures, and uncover ancient treasures.
However, there's a problem lurking in the enchanted fabric of your game world: every time a new portal object is created, a new portal springs into existence. This seemingly innocuous behavior soon spirals into chaos as the game progresses:
The objective of this post is to explain and show how to implement the Abstract Factory Pattern in a basic way.
Check all the description and information related to the Abstract Factory Pattern and return here to see a practical example.
You're crafting an immersive gaming experience where players are transported to a vibrant world filled with diverse civilizations. Two of these civilizations stand out: the Technocrats, with their sleek, futuristic technology, and the Druids, guardians of ancient wisdom and nature's secrets.
The objective of this post is to explain and show how to implement the Prototype Pattern in a basic way.
Check all the description and information related to the Prototype Pattern and return here to see a practical example.
Let's suppose that we are using a graphic design tool like Adobe Illustrator or Sketch.
In these applications, users often create complex graphical objects like icons, logos, or illustrations, which can have various configurations and styles. Rather than creating each graphical object from scratch every time a user wants to use it, the Prototype Pattern can be employed to clone existing objects.
Image made by piercless
The objective of this post is to explain and show how to implement the Builder Pattern in a basic way.
Check all the description and information related to the Builder Pattern and return here to see a practical example.
In the world of Konosuba, building an effective adventuring party is no easy feat! You need to consider various roles, attributes, and maybe even questionable quirks. The Builder pattern provides a flexible solution to create personalized adventurers.
